Control Panels

Control system safety features

Max Power’s thruster control systems are childproof and incorporate unique safety features. The control system software monitors for incoherent signals, stray voltage, and abnormally long thrust signals in order to help protect against malfunctions caused by water ingress and short circuits. Visual and audio alarms provide a 10 second warning before the overheat shutdown function is activated. If left idle for thirty minutes, the system switches itself off automatically. Designed with technical details such as independent control power supply (protects relays against damage due to low voltage), and standard remote electric battery isolator control, Max Power’s system is clearly ahead of the competition. These effective mechanisms ensure that your Max Power thruster is both safe and reliable thus guaranteeing peace of mind onboard.

Features

Childproof activation.

Automatic shutdown after 30 minutes of inactivity.

Visible and audible motor overheat warning.

Motor overheat shutdown after prior warning.

Standard automatic battery isolator control.

Time delay switch between port and starboard thrust.

Software protection against short circuits.


Max Power strongly recommends the installation of an automatic battery isolator device when installing thruster systems.

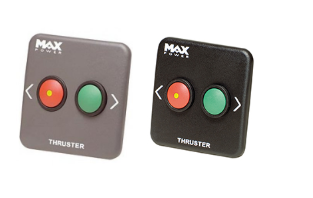

318201-TOUCH PANEL GREY    --    318200-TOUCH PANEL BLACK
Max-Power touch button control Compatible with all Tunnel Thrusters
318201
grey

318200
black

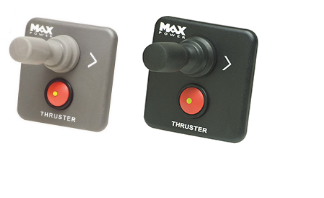

318203-JOYSTICK SIMPLE GREY    --    318202-JOYSTICK SIMPLE BLACK
Max-Power Joy stick control panel Compatible with all Tunnel Thrusters
318203
grey

318202
black

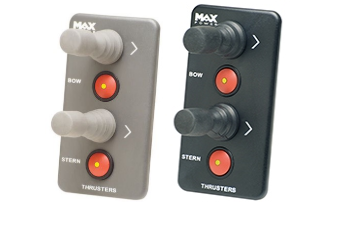

318205-JOYSTICK DOUBLE GREY    --    318204-JOYSTICK DOUBLE BLACK
Max-Power double joystick control Panel Compatible with all Tunnel Thrusters
318205
grey

318204
black

318234-CONTROL PANEL BOAT BLACK
Max-Power swivel conrol panel The Boat control panel simplifies the combined use of a bow and stern thruster.
Full and simultaneous control of both thrusters is possible via one easy to use manipulator.
Stepping the boat sideways or turning 360° on the spot become smooth, simple operations, and each thruster can still be used independently.

318234

318224-JOYSTICK VIP and RETRACT GREY    --    318206-JOYSTICK VIP and RETRACT BLACK
Max-Power Dual Control panel Compatible with: Compact Rectract all VIP and R200
318224
grey

318206
black

318226-JOYSTICK BLACK R300/R450
Max-Power retractable control panel Compatible with: R300 and R450
318226

318233-TOUCH PANEL DOUBLE BLACK 2004
Max-Power double button conrol panel Compatible with: All retractable thrusters, in combination with: 318204 - 318205 - 318234
318233

Radio Remote Controls

Max-Power small remote

Max Power Radio remote control is designed to work with our entire range of tunnel and retractable thrusters. The remote control can also be used to operate additional onboard equipment such as windlasses, passerelles, cranes, etc.

Features

Transmitter rated IP 67.

Supports up to 8 independently control channels.

Each receiver can switch 4 channels (12/24V -2A).

Each transmitter can handle 2 receivers (8 channels).

Digital recognition avoids accidental activation of other systems.

Zero power consumption when in standby mode(transmitter).

Easy to install and set up, simple to use.

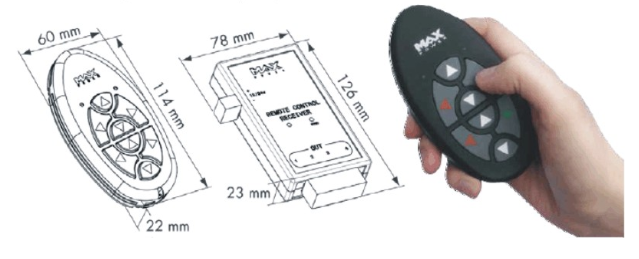

Max-Power hand remote


EU

Description Transmitter and Receiver
(EU)
Reciever
(EU)
Transmitter
(EU)
Frequency 868MHz 868MHz 868MHz
Voltage 12v-24v 12v-24v 2 x 3v CR2430
Operating Temp -10 : +60 -10 : +60 -10 : +60
IP Protection Transmitter 67 67
Max Amps Contacts Receiver 2a 2a
Weight (gr) 310 100 85
Dimensions (mm) 26x78x23 114x60x22
Prices
312973

312971

312969

USA

Description Transmitter and Receiver
(USA)
Receiver
(USA)
Transmitter
(USA)
Frequency 915MHz 915MHz 915MHz
Voltage 12v-24v 12v-24v 2 x 3v CR2430
Operating Temp -10 : +60 -10 : +60 -10 : +60
IP Protection Transmitter 67 67
Max Amps Contacts Receiver 2a 2a
Weight (gr) 310 100 85
Dimensions (mm) 26x78x23 114x78x23
Prices
312974

312972

312970
