R600 Hydraulic Retractable Thrusters
100ft-167ft
30m-52m

Max-Power R600 Hydraulic retract Bow thruster

An ingenious design makes this thruster the lightest and arguably the safest 100HP retractable thruster available.

With a locking system inspired by aircraft cargo doors, and thrust transfer pads to transmit load to the hull, performance is first and foremost with this unit ideal for yachts from 100-167ft 30-52mtrs.

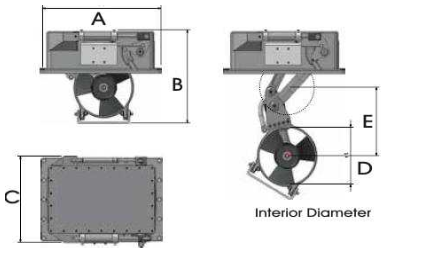

Max-Power Hydraulic retract A 1210mm
B 967mm
C 985mm
D 600mm Interior Diameter
E 722mm

Power Ratings (hp) 75/110
Thrust 12kg per kw
Max Hydraulic Power 83kw
Requirements (up to) Upon request
Power pack options PTO
Hydraulic motor Piston
Opening/closing mechanism Twin Hydraulic
Propellers Mono, 4 blades
Weight 320
Price
317819

Additional Components

POWER LIFT R600 JOYSTICK BLACK

313352

318226
