R200 Hydraulic Retractable Thrusters
45ft-68ft
13m-21m

Benefiting from a 2005 control system redesign, the R200 is the smallest model in the Max Power RetractTM range.

Designed for top end production boats, this hydraulic retractable thruster has long been installed in prestigious yachts ranging from 45 - 68ft - 13-21mtrs.

A 500mm B 355mm C 320mm D 200mm E 255mm

Power Ratings (hp)	10/17
Thrust	10 kg per kw
Max Hydraulic Power	13kw
Hydraulic Power	20 lpm / 220 bar
Requirements (up to)	30 lpm/250 bar
Power pack options	PTO and 24V
Hydraulic motor	Piston
Opening/closing mechanism	Electric and manual
Propellers	Duo, 2 blades
Weight	35

Model	R200/6	R200/8
Complete Unit	Click for Quote 317801 RETRACT R200/6 24V	Click for Quote 317802 RETRACT R200/8 24V
Complete Unit Includes
	317803 THRUSTER ASSEMBLY R200/6 Click for Quote	317804 THRUSTER ASSEMBLY R200/8 Click for Quote
	312950 ELECTRONIC CONTROLLER VIP/R200 Click for Quote	312950 ELECTRONIC CONTROLLER VIP/R200 Click for Quote

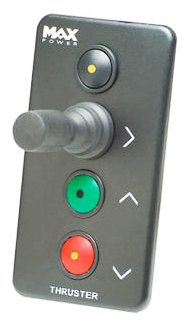

	318224 JOYSTICK VIP and RETRACT GREY Click for Quote	318224 JOYSTICK VIP and RETRACT GREY Click for Quote
Hydraulic Distribution Block	316504 MAX POWER DIST. KIT HYD Click for Quote	316504 MAX POWER DIST. KIT HYD Click for Quote
	313456 TANK 8LTS WHITE Click for Quote	313456 TANK 8LTS WHITE Click for Quote
	316511 ELECTROPUMP BK8/8.5cc Click for Quote	317904 ELECTRO HYDRAULIC PUMP BK13/11cc Click for Quote
