Hydraulic Tunnel Thrusters

Max Power’s range of hydraulic tunnel thrusters are suitable for medium to heavy displacement, high windage vessels from 40-85’. Designed for durability and performance, hydraulic tunnel thrusters are ideal when long runtimes are required. Manufactured using corrosion free components, these models are robust, water resistant and integrate a variety of unique features.

Features

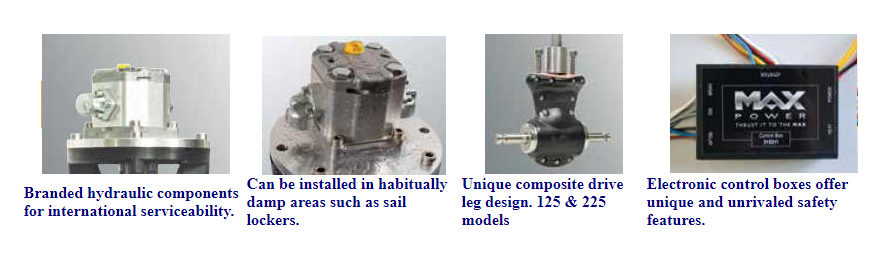

Branded hydraulic components.

Long runtimes.

Water resistant.

Patented composite drive legs.

Zero maintenance.

Case hardened spiro-conical gears.

Line shields.

Electronic control boxes for unrivaled safety features.

Max-Power Hydraulic Tunnel Thrusters
Max-Power CT125 Hydraulic Bow Thruster The CT HYD 125 is designed for motor yachts and deep footed sailing yachts ranging from 35’ 57’.
The smallest in the hydraulic tunnel thruster range, the twin propeller CT HYD 125 is fabricated using composite materials, has a 185mm diameter tunnel, a thrust rating up to 125/275 (kg/lbs) and integrates all the unique features of the range.
More information and prices

Max-Power CT225 Hydraulic Bow thruster The CT HYD 225 is designed for motor yachts and deep footed sailing yachts ranging from 45’-70’.
Manufactured using composite materials, this twin propeller model has a 250mm diameter tunnel, a thrust rating up to 225/495 (kg/lbs) and integrates all the unique features of the hydraulic tunnel thruster range.
More information and prices

Max-Power CT300 Hydraulic Bow thruster The HYD 300 is designed for motor boats and deep footed sailing yachts ranging from 52’-90’.
This twin propeller model has a 300mm diameter tunnel and is available in bronze only. A thrust rating of up to 240/529 (kg/lbs).
More information and prices

Max-Power CT325 Hydraulic Bow Thruster The HYD 325 is designed for motor boats and deep footed sailing yachts ranging from 52’-90’.
The largest in the hydraulic tunnel thruster range, this twin propeller model has a 315mm diameter tunnel and is available in bronze only. Two different power options offer a thrust rating of up to 250/550 (kg/lbs) or 275/606(kg/lbs).
More information and prices
Max-Power CT550 Hydraulic Bow Thruster The HYD 550 is ready to enlarge the range of MAX POWER Tunnel Thrusters for boats up to 45m. All parts that are in the water are designed with best hydrodynamic profile to avoid turbulence. It is the most powerful tunnel thruster in D400 tunnel size with 4 blade propellers in metallic material to guarantee maximum thrust performance. Counter rotating system offers higher efficiency on thrusting with left side and right side pitch props in order to have same results in both directions More information and prices
