CT45 Tunnel Thruster
12v 3.23kw-4.3hp

Designed for performance and durability, easy to fit, highly cost
effective, and integrates a variety of unique features.

Features

Patented composite drive legs.

Zero maintenance.

Case hardened spiro-conical gears.

Line shields.

Purpose built DC motors.

Electronic control boxes for unrivaled safety features.

Safe, high power connections.

Purpose built high specification DC contactors.


Measurements

Standard Ignition Protected

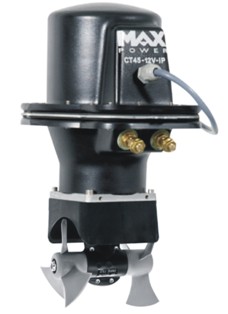

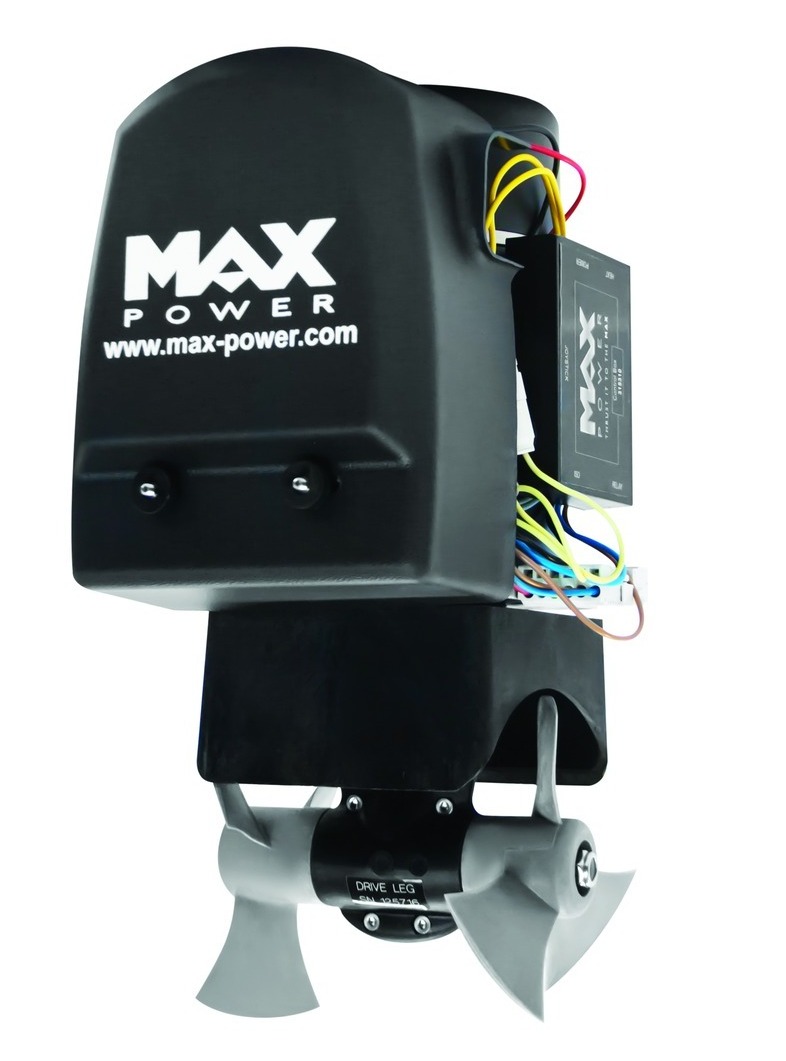

Max-Power CT45 Bow thruster Max-Power CT45 IP Bow thruster
Standard Ignition Protected
A 190mm
B 140mm
C 210mm
D 125mm Ø
E 4mm-5mm
Max-Power Dimensions A 301mm
B 230mm
C 295mm
D 125mm Ø
E 4mm-5mm

CT45 Standard Ignition Protected
Voltage 12V 12V
Thrust (kg/Ibs) 39 / 88 39 / 88
Propellers Duo Duo
Power (kw/hp) 3.23 / 4.3 3.23 / 4.3
Weight (kg) 9.65 11.65
Price
317603

317610

Select Tunnel Length, Control Panel, Cable Length and Fuse

Tunnel

Max-Power GRP tubes

TUNNEL
Ø125 x 0.5 mtr
TUNNEL
Ø125 x 0.75 mtr
TUNNEL
Ø125 x 1.0 mtr
TUNNEL
Ø125 x 1.25 mtr
TUNNEL
Ø125 x 2.5 mtr

42546

42547

313804

313809

42548

Control Panel

Max-Power Conrol Panels

JOYSTICK
SIMPLE BLACK
JOYSTICK
SIMPLE GREY
TOUCH PANEL
BLACK
TOUCH PANEL
GREY

318202

318203

318200

318201

Cable Length

Max-Power 6 core cable

CONTROL CABLE TUNNEL THRUSTERS
price per metre

312781

Fuse

Max-Power Fuse
FUSE 125A T1 AND HOLDER

35021/17
