CT325 Tunnel Thruster
24v 19.69kw-26.4hp

Designed for performance and durabilit, easy to fit, highly cost
effective, and integrates a variety of unique features.

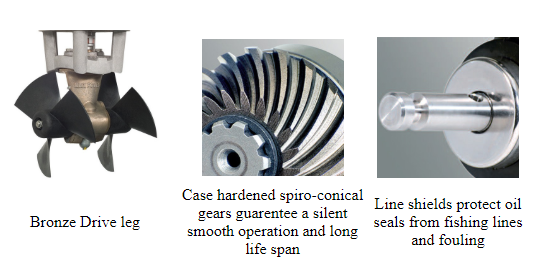

Features

Case hardened spiro-conical gears.

Line shields.

Purpose built DC motors.

Electronic control boxes for unrivaled safety features.

Safe, high power connections.

Purpose built high specification DC contactors.


Max-Power CT325 Bow thruster

Measurements

Max-Power dimensions A 250mm
B 250mm
C 480mm
D 315mm Ø
E 9mm-10mm

Max-Power gear box
CT325
Voltage 24v
Thrust (kg/Ibs) 255/ 562
Propellers Duo
Power (kw/hp) 19.69 / 26.4
Weight (kg) 59
Price
42542

Select Tunnel Length, Control Panel, Cable Length and Fuse

Tunnel

Max-Power GRP tubes

TUNNEL
Ø315 x 1.5 mtr		 TUNNEL
Ø315 x 2.0 mtr

35004
42557

Control Panel

Max-Power Conrol Panels

JOYSTICK
SIMPLE BLACK		 JOYSTICK
SIMPLE GREY		 TOUCH PANEL
BLACK		 TOUCH PANEL
GREY

318202
318203
318200
318201

Cable Length

Max-Power 6 core cable

CONTROL CABLE TUNNEL THRUSTERS
price per metre

312781

Fuse

Max-Power Fuse
FUSE 400A T2 AND HOLDER
24v 400a

35028/18
