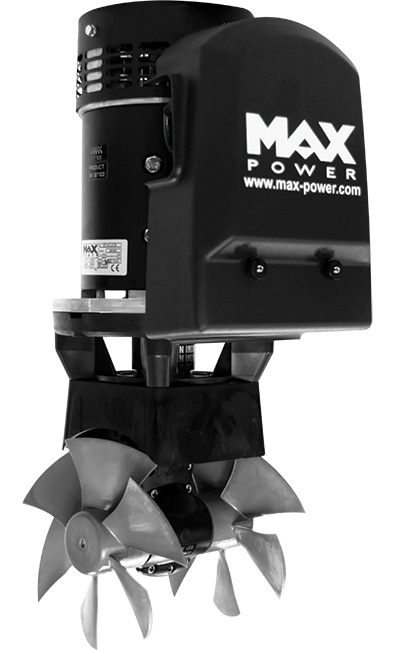

CT125 Tunnel Thruster
24v 8.58kw-11.5hp

CT125 Full Data sheet

Designed for performance and durability, easy to fit, highly cost
effective, and integrates a variety of unique features.

Features

Patented composite drive legs.

Zero maintenance.

Case hardened spiro-conical gears.

Line shields.

Purpose built DC motors.

Electronic control boxes for unrivaled safety features.

Safe, high power connections.

Purpose built high specification DC contactors.


Measurements

Standard Ignition Protected
Max-Power CT125 Max-Power CT125IP
Standard Ignition Protected
A 250mm
B 200mm
C 365mm
D 185mm Ø
E 6mm-7mm
Max-Power Dimensions A 390mm
B 305mm
C 490mm
D 185mm Ø
E 6mm-7mm

CT125 Standard Ignition Protected
Voltage 24v 24v
Thrust (kg/Ibs) 115 / 254 115 / 254
Propellers Duo Duo
Power (kw/hp) 8.58 / 11.5 8.58 / 11.5
Weight (kg) 24 24
Price
2,763.26 €

42535
4,056.92 €

317616

Select Tunnel Length, Control Panel, Cable Length and Fuse

Tunnel

Max-Power GRP tubes

TUNNEL
Ø185 x 0.75 mtr
TUNNEL
Ø185 x 1.0 mtr
TUNNEL
Ø185 x 1.25 mtr
TUNNEL
Ø185 x 2.5 mtr
223.10 €

42549
286.77 €

42550
445.89 €

42551
732.36 €

42552

Control Panel

Max-Power Conrol Panels

JOYSTICK
SIMPLE BLACK
JOYSTICK
SIMPLE GREY
TOUCH PANEL
BLACK
TOUCH PANEL
GREY
167.73 €

318202
167.73 €

318203
145.45 €

318200
145.45 €

318201

Cable Length

Max-Power 6 core cable

CONTROL CABLE TUNNEL THRUSTERS
price per metre
4.85 €

312781

Fuse

Max-Power Fuse
FUSE 200A T1 AND HOLDER
24v 200a
65.12 €

35020/17
