CT100 Tunnel Thruster
12v 7.1kw-9.5hp

CT100 Full Data sheet

Designed for performance and durability, easy to fit, highly cost
effective, and integrates a variety of unique features.

Features

Patented composite drive legs.

Zero maintenance.

Case hardened spiro-conical gears.

Line shields.

Purpose built DC motors.

Electronic control boxes for unrivaled safety features.

Safe, high power connections.

Purpose built high specification DC contactors.

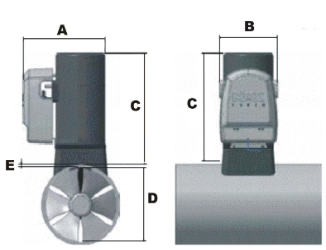

Measurements

Standard Ignition Protected
Max-Power CT100 Spare parts Max-Power CT125IP
Standard Ignition Protected
A 250mm
B 200mm
C 365mm
D 185mm Ø
E 6mm-7mm
Max-Power Dimensions A 390mm
B 305mm
C 490mm
D 185mm Ø
E 6mm-7mm

CT100 Standard Ignition Protected
Voltage 12V 12V
Thrust (kg/Ibs) 96 / 212 96 / 212
Propellers Duo Duo
Power (kw/hp) 7.1 / 9.5 7.1 / 9.5
Weight (kg) 24 27.2
Price
2,837.54 €

42534
4,211.92 €

317615

Select Tunnel Length, Control Panel, Cable Length and Fuse

Tunnel

Max-Power GRP tubes

TUNNEL
Ø185 x 0.75 mtr
TUNNEL
Ø185 x 1.0 mtr
TUNNEL
Ø185 x 1.25 mtr
TUNNEL
Ø185 x 2.5 mtr
196.79 €

42549
246.65 €

42550
370.88 €

42551
609.31 €

42552

Control Panel

Max-Power Conrol Panels

JOYSTICK
SIMPLE BLACK
JOYSTICK
SIMPLE GREY
TOUCH PANEL
BLACK
TOUCH PANEL
GREY
188.20 €

318202
188.20 €

318203
163.19 €

318200
163.19 €

318201

Cable Length

Max-Power 6 core cable

CONTROL CABLE TUNNEL THRUSTERS
price per metre
4.26 €

312781

Fuse

Max-Power Fuse
FUSE 315A T2 AND HOLDER
12v 315a
73.83 €

35022/18
